83 Series
Transverse Cargo Slide

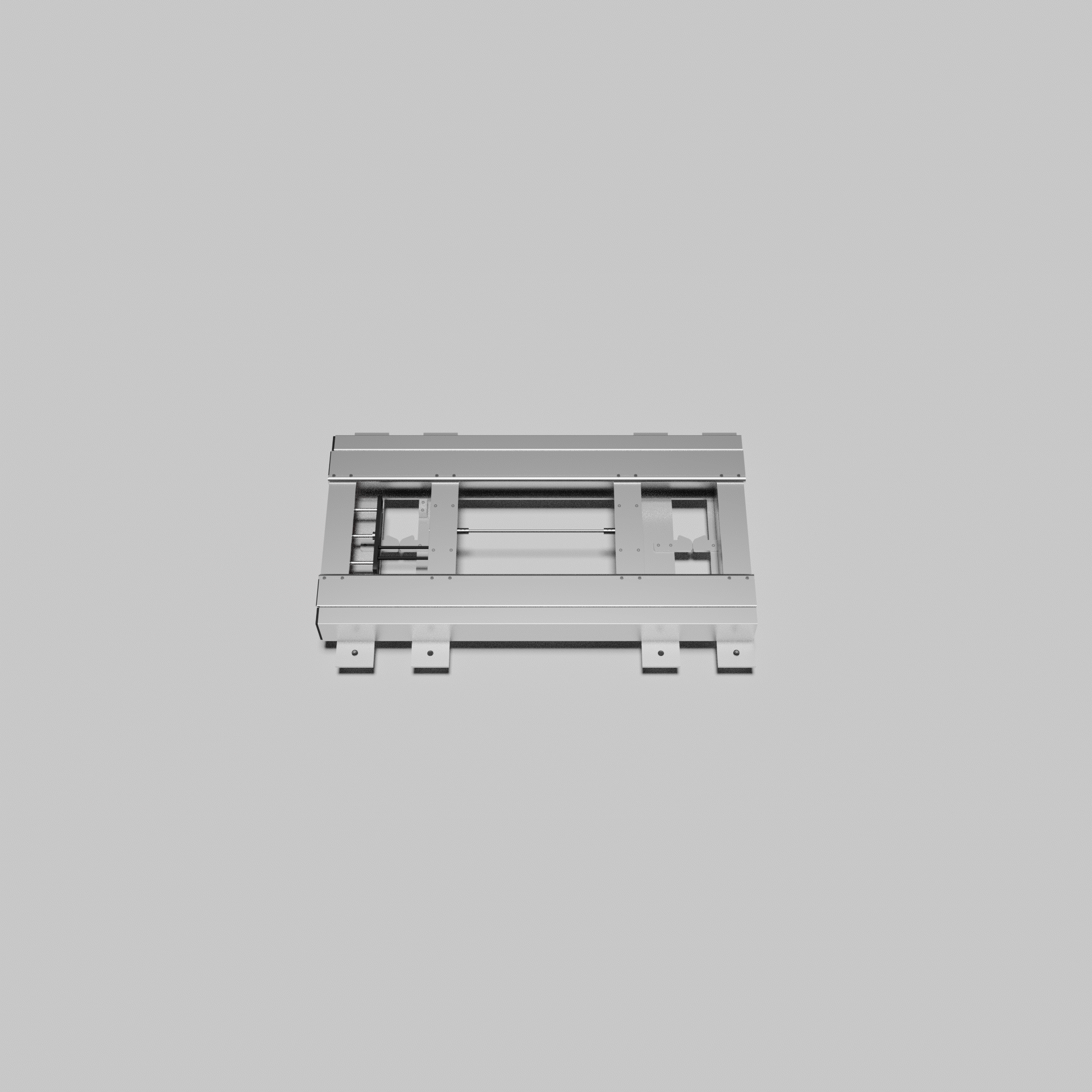

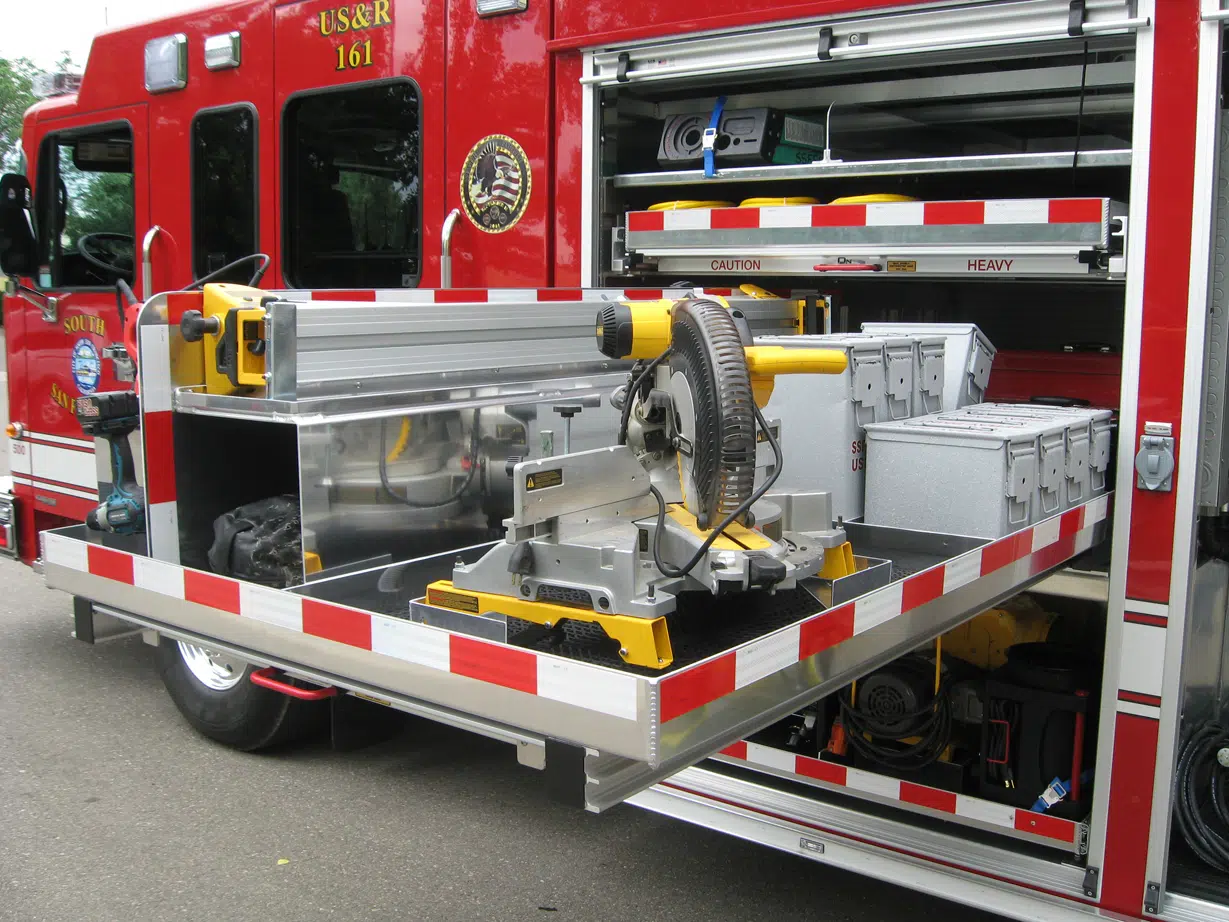

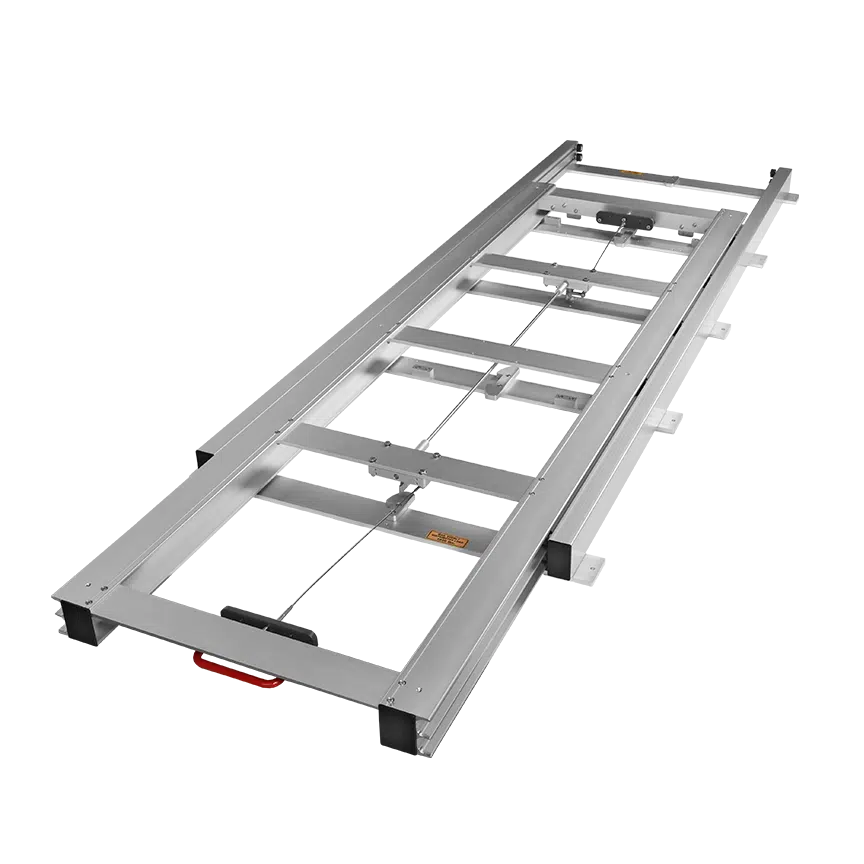

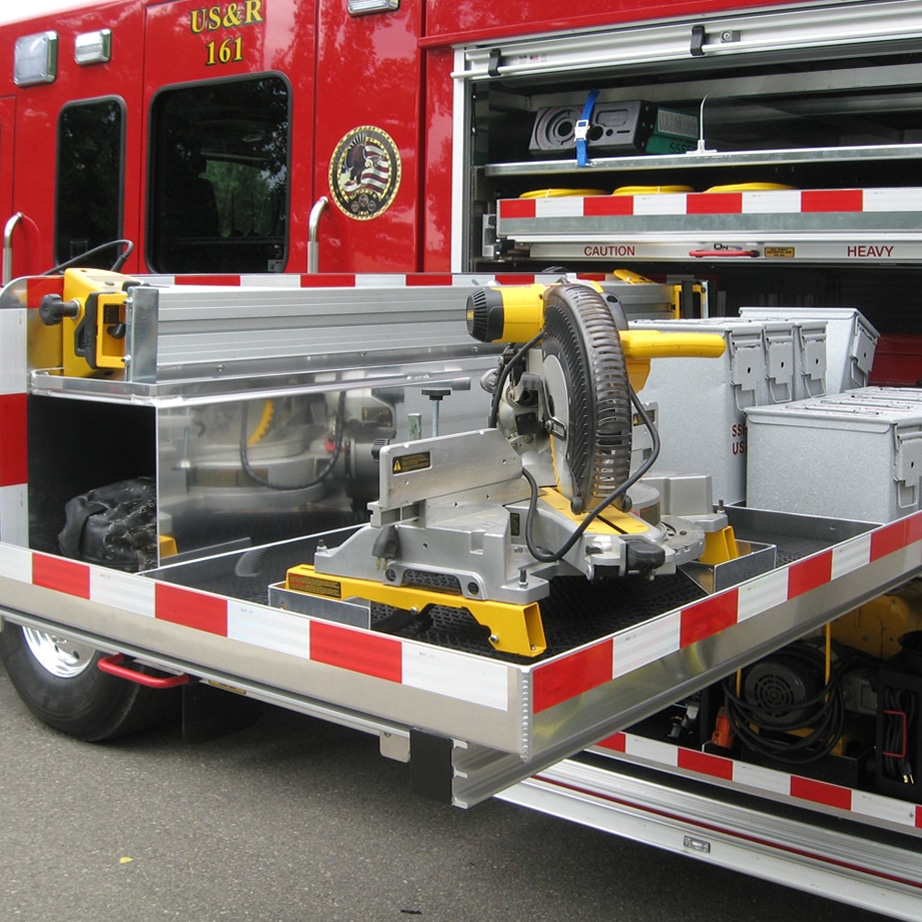

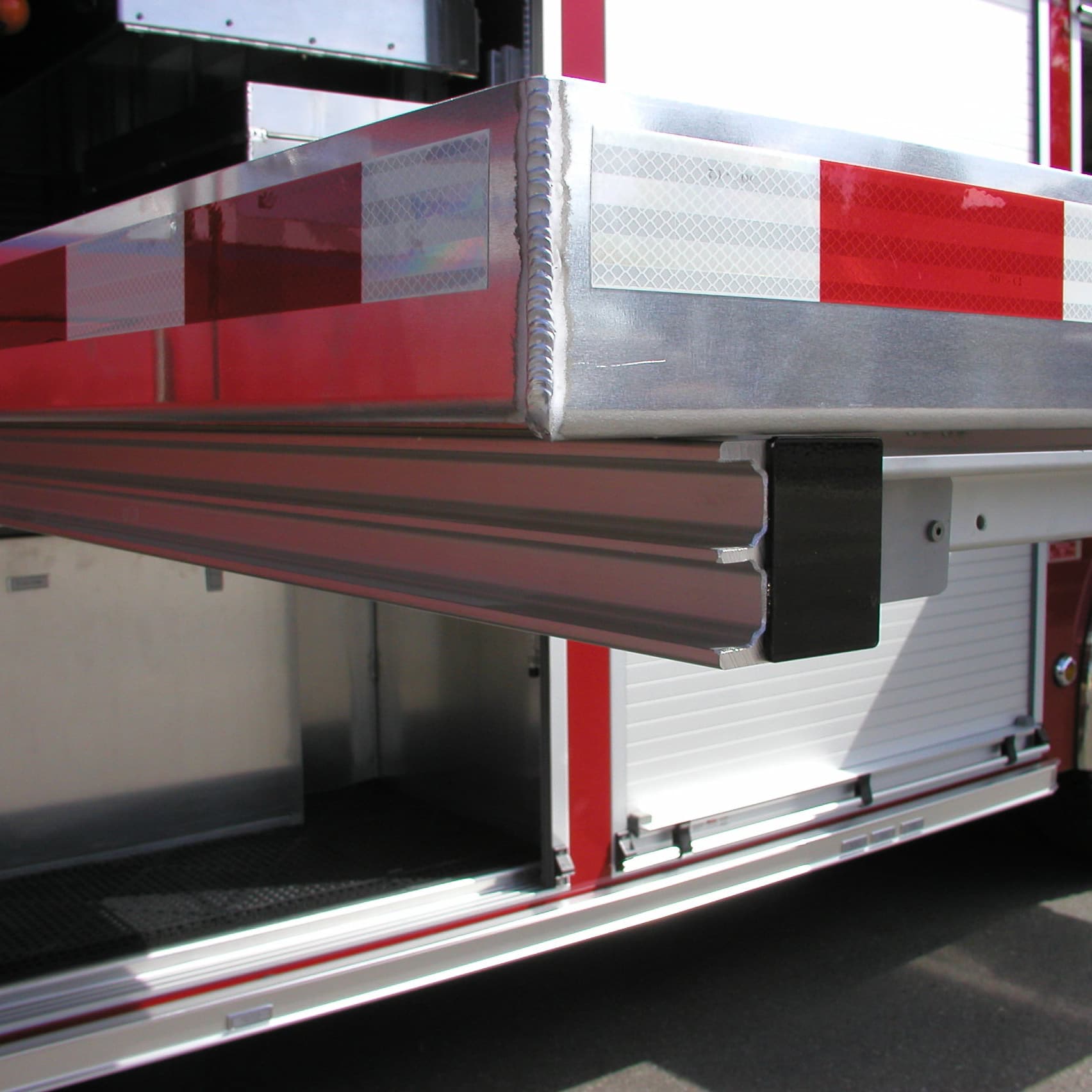

The 83 Series Cargo Slides are heavy duty dual direction transverse slides ideal for pass through compartments. With up to 1,000 lbs. capacity, 70% extension, and sizes from 40 to 96 inches deep, they’re built from anodized aluminum and stainless steel for superior corrosion resistance. Urethane wheels ensure ultra smooth gliding, and every unit includes a limited lifetime warranty.
Shipping costs not included; shipping costs will be billed separately. Download Engineering Drawing
CUSTOMIZE YOUR CARGO SLIDE:
Secure Checkout:
BRANDS WHO TRUST onscene solutions cargo slides >
PRODUCT DETAILS
SPECIFICATIONS
✔ 70% extension
✔ Up to 1,000-lb. weight rating!
✔ Sizing up to 8 ft. long and 60 in. wide
✔ Depth 40″-96″
DESIGN DIFFERENCES
✔ Corrosion-resistant, anodized-aluminum construction
✔ Easy-access release handle designed for gloved hands
✔ Lighter than comparable steel slides
✔ Urethane (not metal!) wheels provide smooth glide

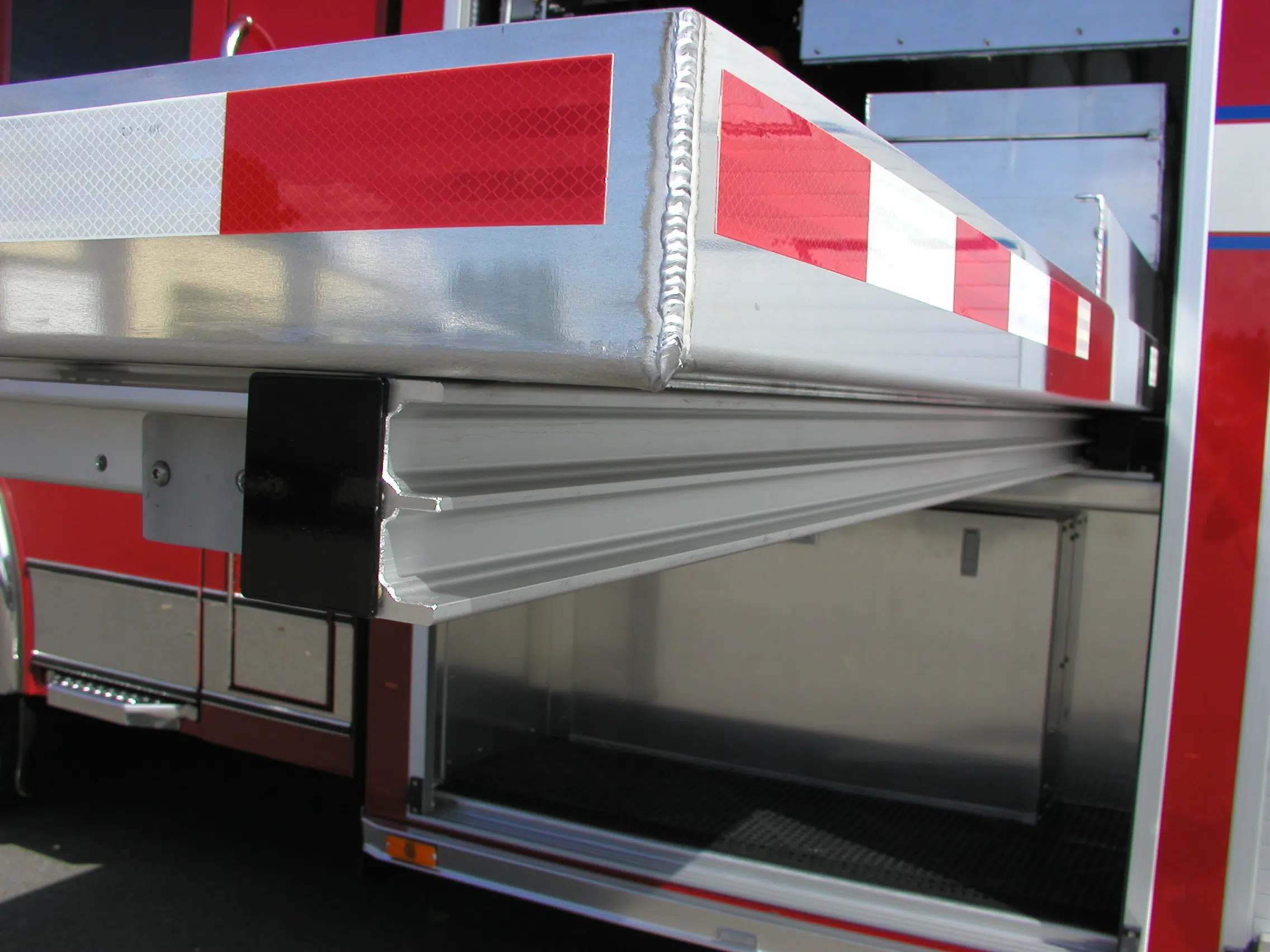

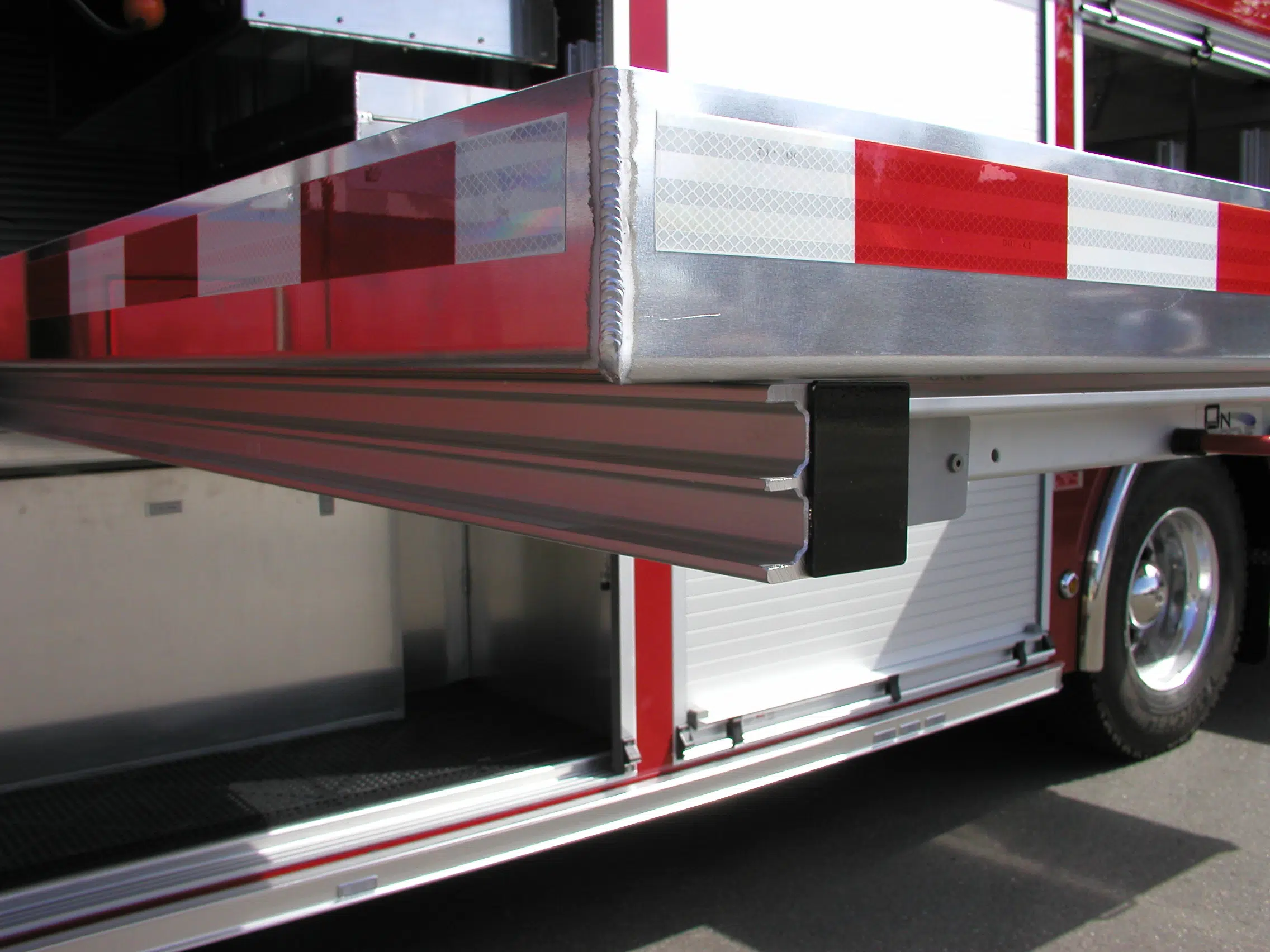

✔ Transverse dual-direction action, exiting both sides of the vehicle
WARRANTY

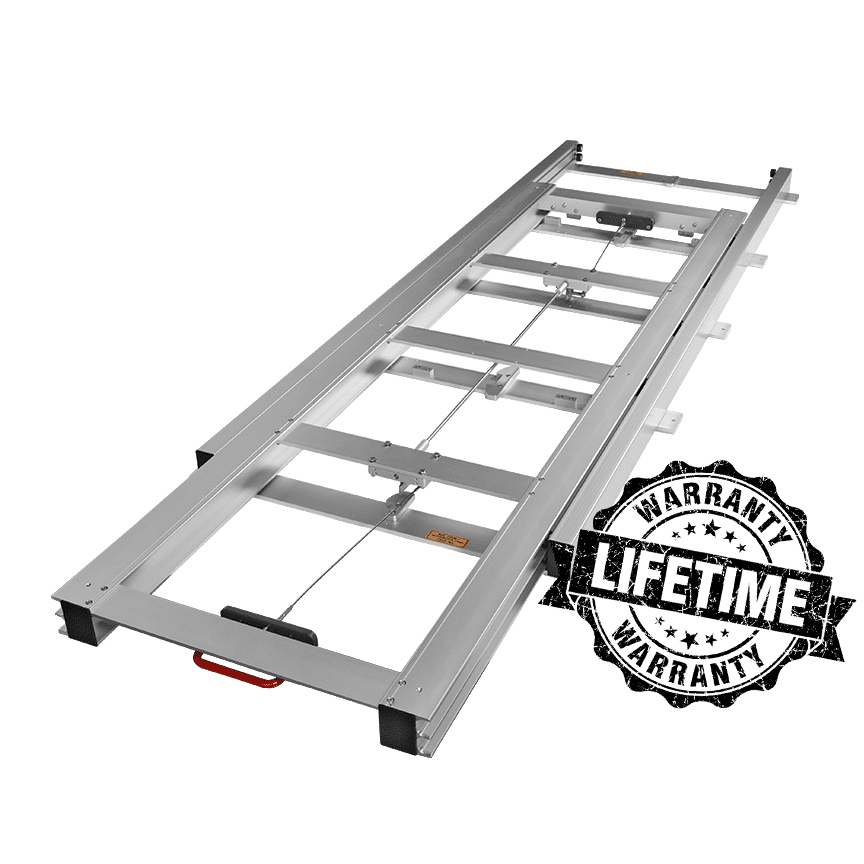

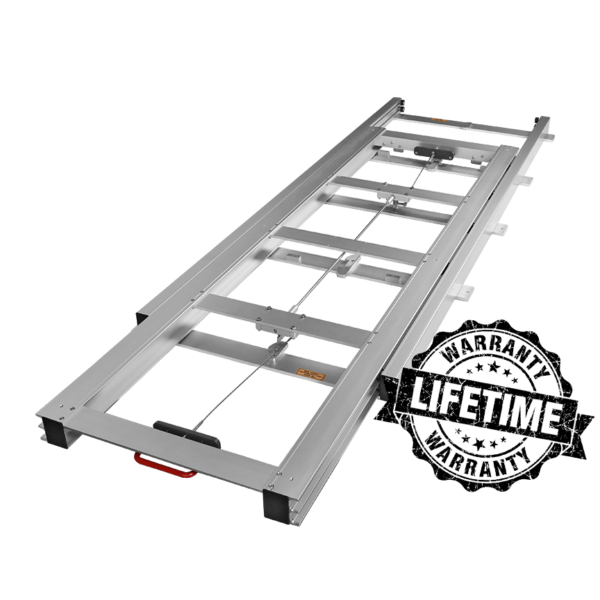

✔ A LIFETIME limited warranty!
SHIPPING
✔ Shipping not included; costs will be billed separately.
AVAILABLE SIZES
| Length Range | 40"-48", 50"-60", 62"-72", 74"-84", 86"-96" |
|---|---|
| Width Range | 18"-30", 31"-40", 41"-50", 51"-60" |
| Mount Type | External Mount, Internal Mount |
