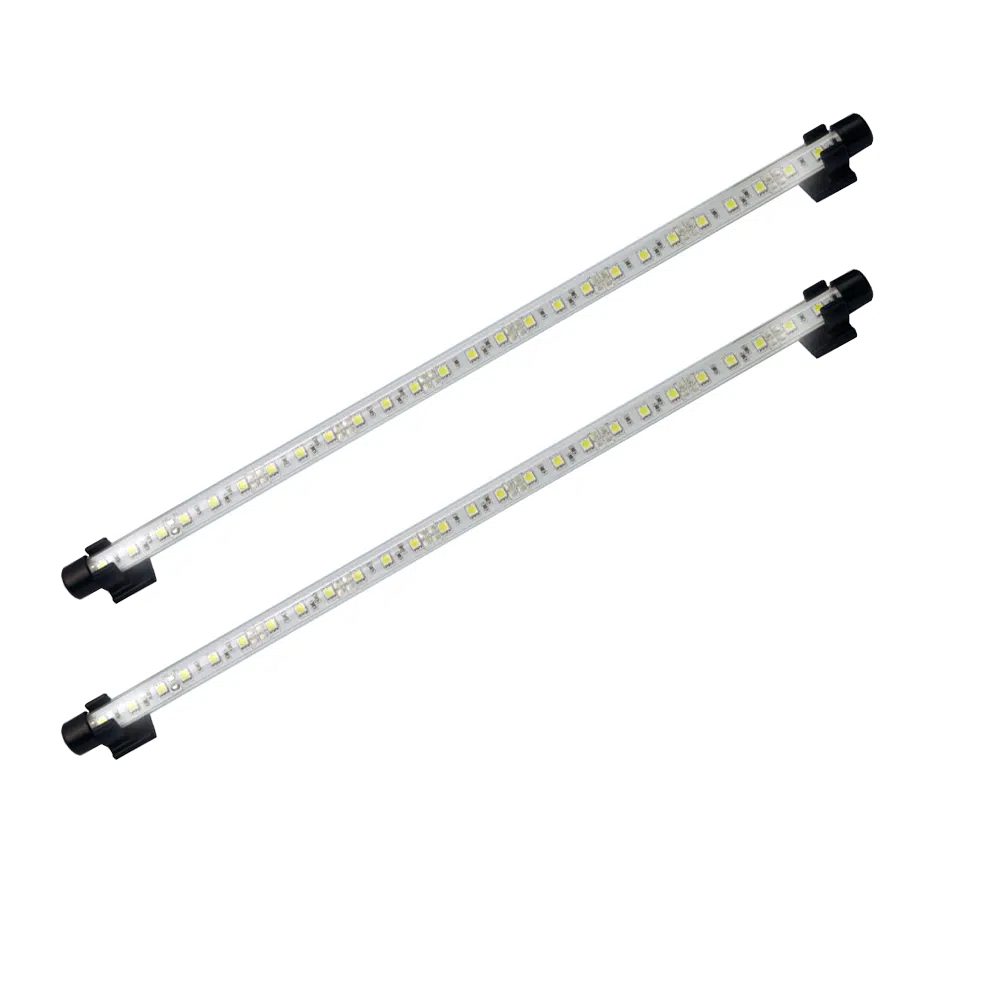

Access Series LED
Secure Checkout:
BRANDS WHO TRUST onscene solutions
LED Lights >
PRODUCT DETAILS
SPECIFICATIONSLED Specifications
✔ 12V-24V voltage
✔ 400 lumens of light per 18″ length
✔ 65MA per 2″ segment amp draw (Example: 10″ light will draw 350 milliamp)
✔ Tough 5/8″ Lexan tube enclosure
✔ Color-changing feature available on 12V
✔ Adjustable beam angle
✔ Waterproof housing
Light Dimensions
✔ Available in lengths from 6″-72″
✔ Cuttable in 2 inch increments
✔ Allows for installation into any roll-up or standard-door configuration
✔ Mounting hardware and 36″ lead included
DESIGN DIFFERENCES
✔ Exceeds NFPA requirements
✔ Great for new or retro-fit applications
WARRANTY
✔ 5-year free replacement warranty
SHIPPING
✔ Fast shipping!
AVAILABLE SIZES
| Weight | 1 lbs |
|---|---|
| Dimensions | 72 × .625 × .625 in |
| Access LED lengths | 6 in., 8 in., 10 in., 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in., 28 in., 30 in., 32 in., 34 in., 36 in., 38 in., 40 in., 42 in., 44 in., 46 in., 48 in., 50 in., 52 in., 54 in., 56 in., 58 in., 60 in., 62 in., 64 in., 66 in., 68 in., 70 in., 72 in. |
ACCESS PRO®

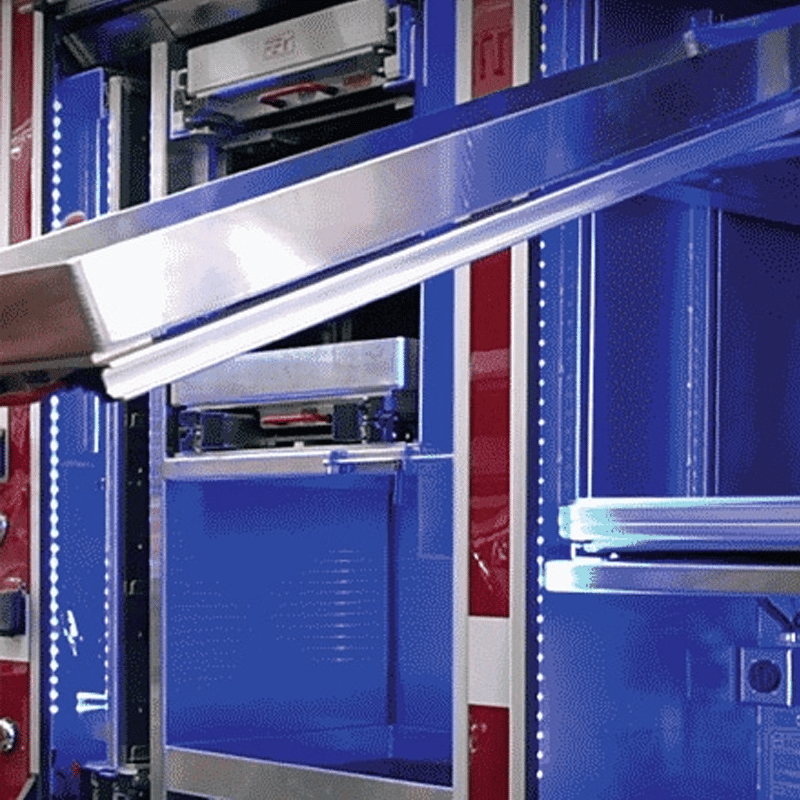

Available in static white, blue, red, or green — the all-new Access Pro® delivers a linear neon experience that eliminates LED hotspots without losing light output — 400 lumens for every 18” of light. All the while, this efficient light, which is backed by a lifetime warranty, consumes 25% less energy than competing LED compartment lights.
ACCESS

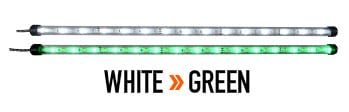

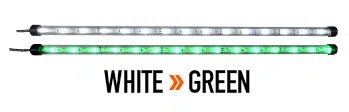

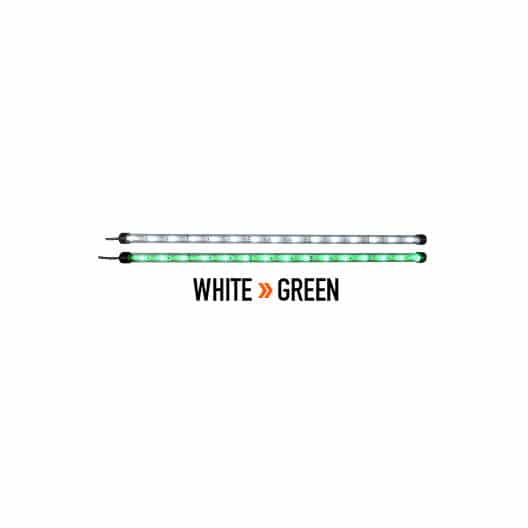

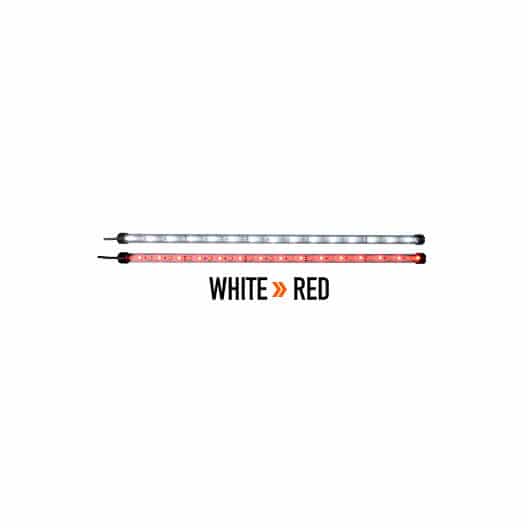

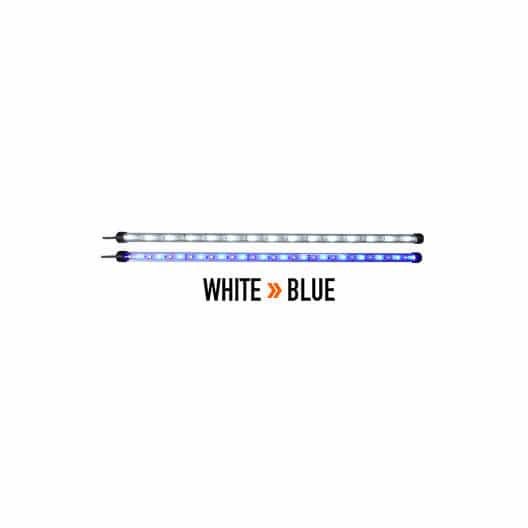

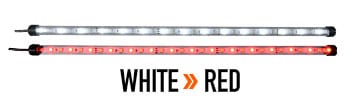

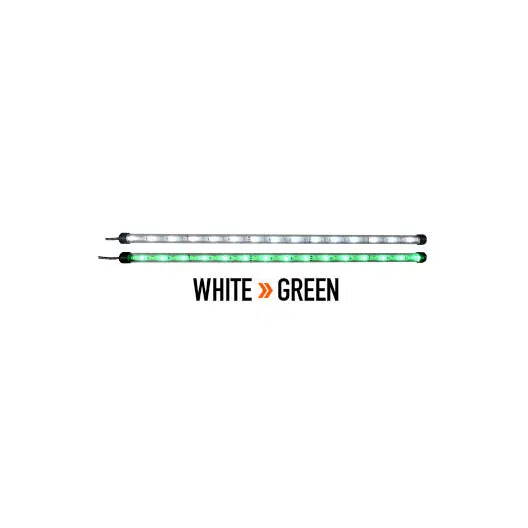

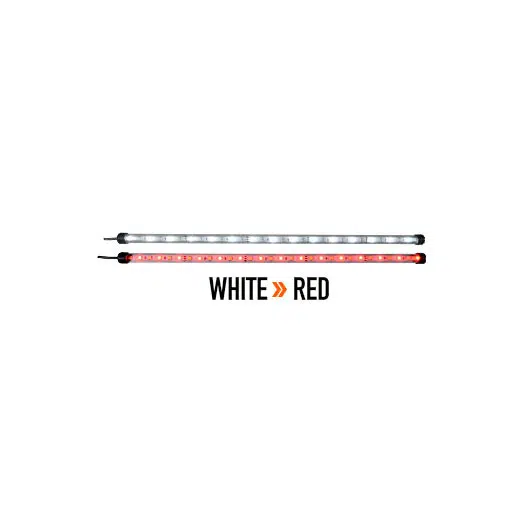

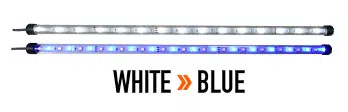

Available in white, red, blue, green, or three different color-changing variations* — white/blue, white/red or white/green, the Access compartment lighting system delivers an abundance of luminous output for extreme lighting situations.
| Output | Warranty | VDC |
|---|---|---|
| 400 lumens for every 18" of light | 5 year | 12 or 24* |
* Color-changing feature is only available on 12V.
NIGHT AXE™
The industry’s only linear tube lighting system to be UL/ULC certified, the Night Axe™ features PWM technology to reduce amperage draw and heat, ensuring a 100,000-hour lifespan.
led mounting clips
for access and night axe lights
These 1x1x1-inch LED mounting clips can be used to mount OnScene Solutions’ cargo lights along the edges and underside of compartment doorways. For Access or Night Axe cargo lights.
